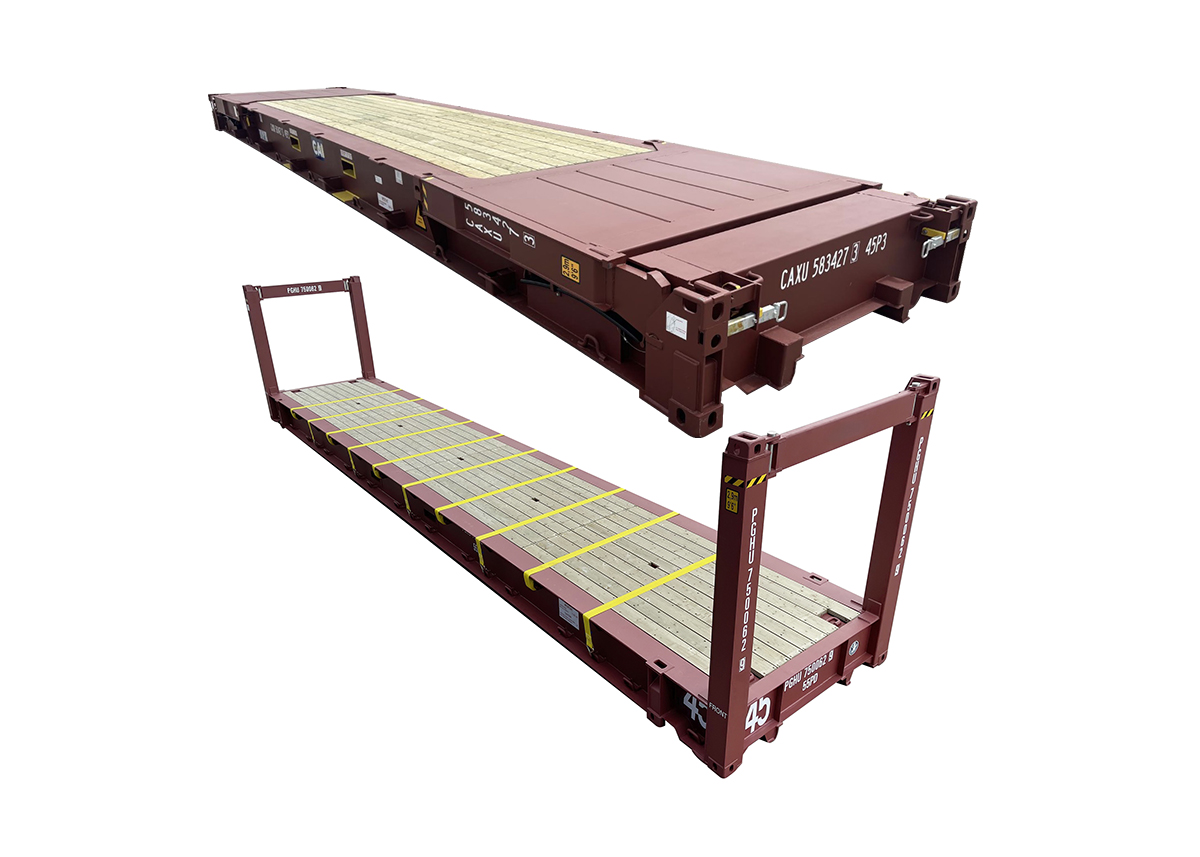

20' Platform
40' Platform
45'HC Platform
20' Frame Container

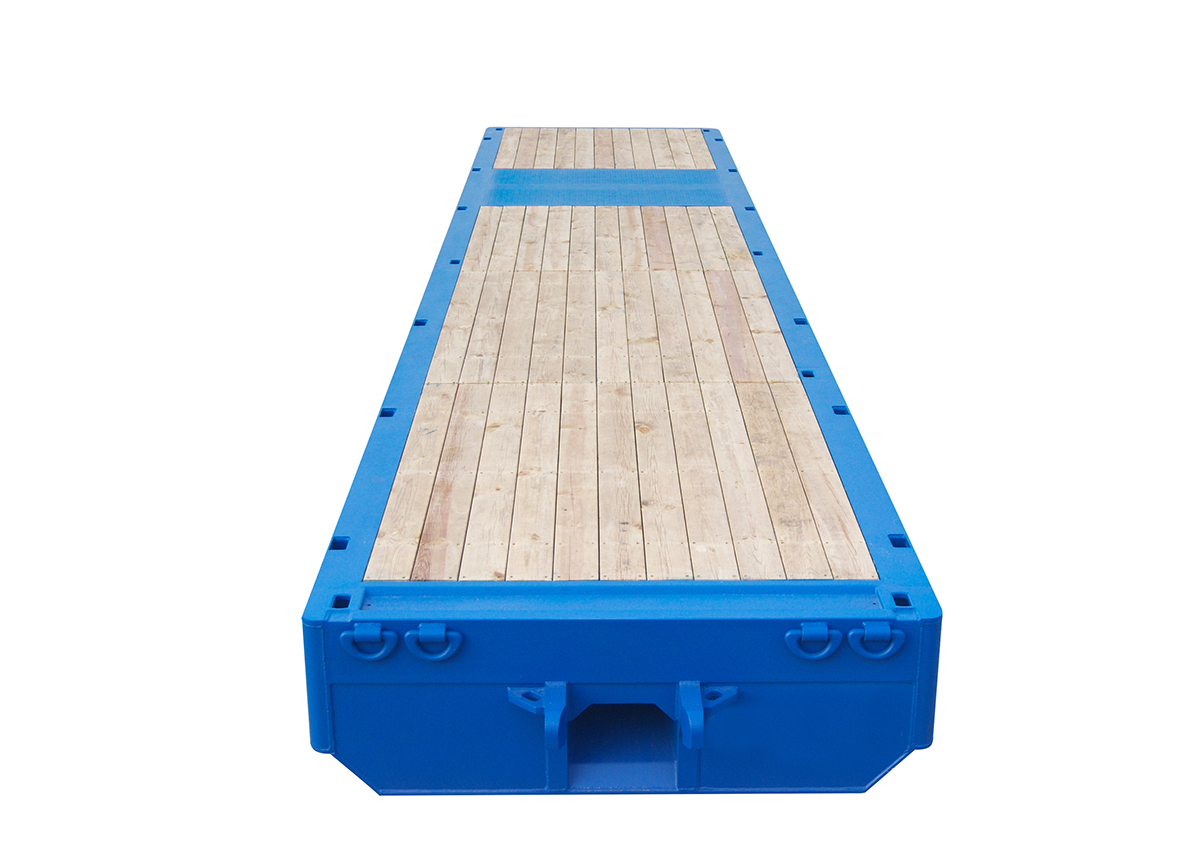

Roll Trailer
Roll Trailer
Platform & Ro-Ro product, which is designed for oversize and super-heavy cargo, can realize lifting and transporting as a whole together with the cargo. It is welcomed for space saving and lower transportation cost when stacking and packing together for the round trip.
| Type | External Dimensions （LxWxH）(mm) | Internal Dimensions （LxWxH）(mm) | Max Gross Weight (kg) |
20' Platform | 6058×2438×236 | 21720 /30480 | |
40' Platform | 12192×2438×648 | 30480 | |

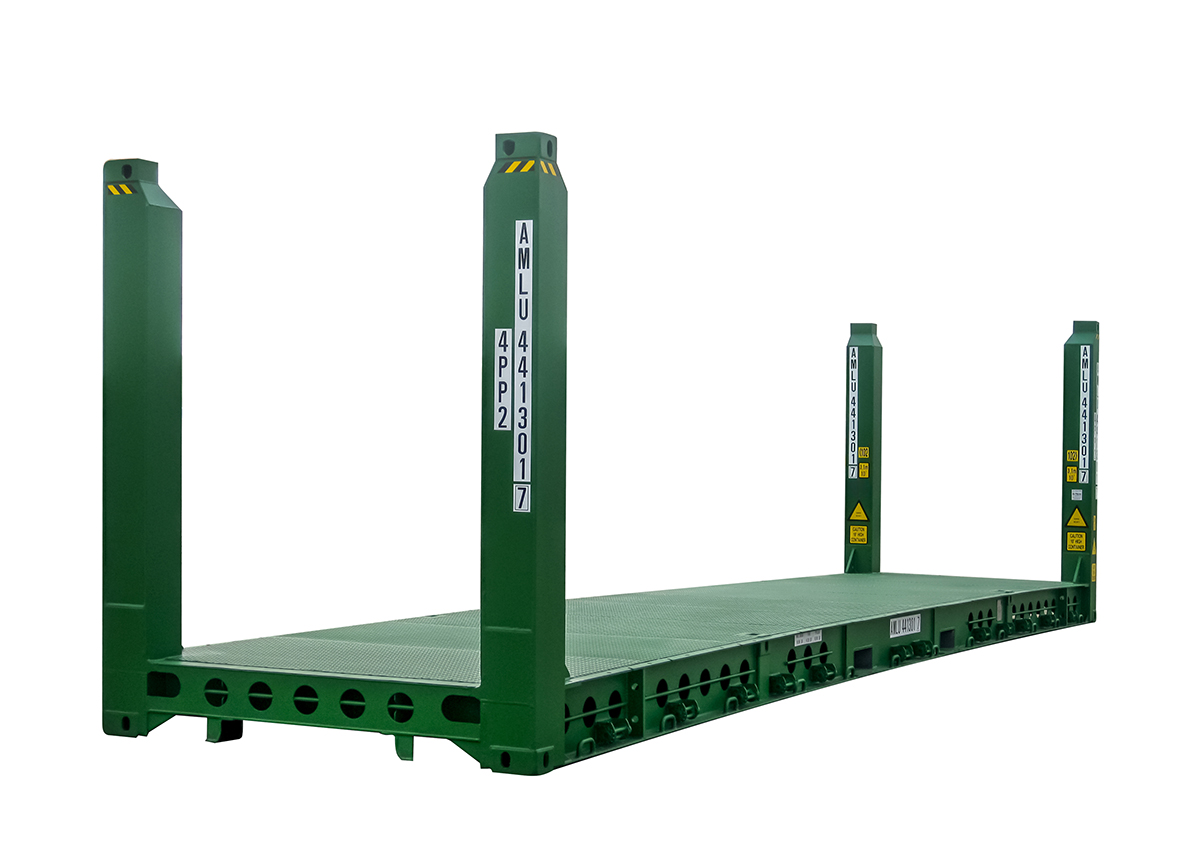

40' Fixed-end Flat Rack | 12192×2438×2896 | 11742×2396×2260 | 30480 |
45' Fixed-end Flat Rack | 13716×2438×2896 | 13266×2378×2302 | 30480 |
40'-100T Roll Trailer | 12635×2550×700 | 100T(Payload) | |
62'-100T Roll Trailer | 19585×2550×800 | 100T(Payload) | |
Cassette | 12250×2600×868 | 60T(Payload) | |
Trestle | 2782×600×1098 |
